CASE STUDY 6

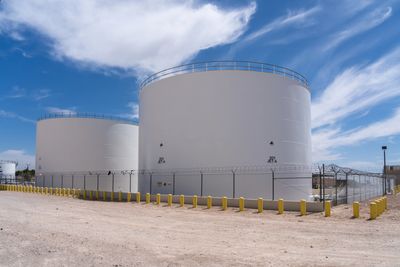

We were commissioned by a storage terminal operator to create an accurate as-built 3D model in support of a bund wall refurbishment project. The work involved high-precision laser scanning and detailed modelling of several terminal areas where bund wall replacement or repair was required.

The resulting 3D model incorporated all existing obstacles within the refurbishment zones, providing a clear and accurate visual reference. This allowed for informed discussions between stakeholders, helping to identify potential challenges and develop practical solutions before work began.

Scope of Work:

• High-resolution 3D laser scanning of targeted terminal areas

• Creation of accurate as-built 3D models including all existing obstacles

• Support for planning and execution of bund wall refurbishment

• Visual aids for design reviews and stakeholder engagement
